Multifunctional Hot air Hot Wedge Welding Machine High Frequency Raincoat Welding Machine For PVC Fabric
FEATURES :
a. With big operating space ;
b. Adopted PLC controlled, easy to operate ;
c. Auto Adjustable temperature control, high stability with very ±2℃, the heating coil is protected by the design of upper-temperature limit ;
d. With pedal control gives easy operation, suitable for long time operation;
e. Able to work 24 hours with high efficient and stable performance;
f. Unique heating tube technology ;
g. Auto slightly fading function, to avoid blank space of hot air sealing.
h. Providing with king-size twist square design.
i. Welding
PRODUCT PARAMETER:
| MODEL | WELD-15 |
| POWER SUPPLY | AC-220V 50HZ |
| POWER | 3000W |
| TEMPERATURE OF HEATING CONTROL | Up to 700℃ for hot air heat control |
| TEMPERATURE OF HOT WEDGE | Up to 450℃ for hot wedge |
| SPEED | 1-18m/min |
| PRESSURE | 0.35-0.5 Mpa |
| PINCH ROLLER WIDTH | 20/30/40/50mm |
| NOZZLE WIDTH | 20/30/45m |
| OPTION FUNCTION | Hot Wedge |
| DIMENSION | 1500MM*750MM*1600MM(L*W*H) |
| NET WEIGHT | 245KG |

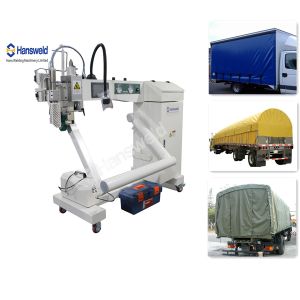

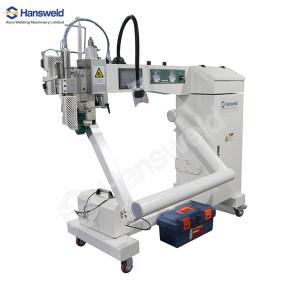

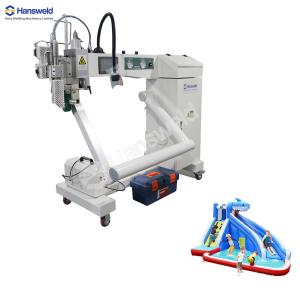

IMAGE OF PRODUCT:
APPLICATION:
